Ebike Light Kit with Turn Signals – 24V 36V 48V Universal Electric Bicycle Headlight & Brake Taillight, 400 Lumens Super Bright, Handlebar Switch Control, Waterproof for E-Bike Scooter

Product description

Upgrade your electric bike’s safety and visibility with this comprehensive ebike light kit featuring a powerful 400-lumen headlight and smart taillight system. The headlight, weighing just 3.5 ounces, provides excellent forward illumination while the innovative taillight incorporates turn signals and brake light functionality.

Compatible with 36V/48V systems, this kit includes a handlebar-mounted switch for easy control of all lighting functions.

Installation is straightforward with the included wiring harness – the headlight cable extends 47 inches, and the taillight reaches 67 inches. The switch features a 59-inch cable and fits standard 0.87-inch handlebars.

Perfect for enhancing both safety and style on your electric bike, this kit provides essential lighting features for day and night riding.

48V ebike light kit with turn signals

Including headlight, turn sginal taillight and switch

1.Headlight powerful 400 Lumen, fits for city cycling.

2.Taillight with turn signal light, ensure safety.

3.Switch on handlebar to control light ON/OFF, Turn Left/Right, easy to use.

Headlight

1. Weight:100G

2. Size: 54.7*52.5*58mm

3. Material: ABS+PC

4. Cable length: 1.2M

5. Voltage: 36V/48V

6. Power: 4W

7. Brightness: 400lumens

Turn Signal Taillight

1. Net weight: 101G

2. Material: plastic

3. Applicable voltage: 12V-48V

4. Power: 1.3W

5. Luminous: 100LM

6. Product size: 103*30*26mm

7. Cable length: 1.7M

8. Fits Rack: 80mm holes distance

9.With brake light function too

Switch Specifications

1.For handlebar size: 22.0mm

2.Product size: L54*W27*H54MM

3.Waterproof: IP65

4.Cable length: 1.5 M

5.Applicable voltage range: 12V-48V

6.Maximum working current: 1A

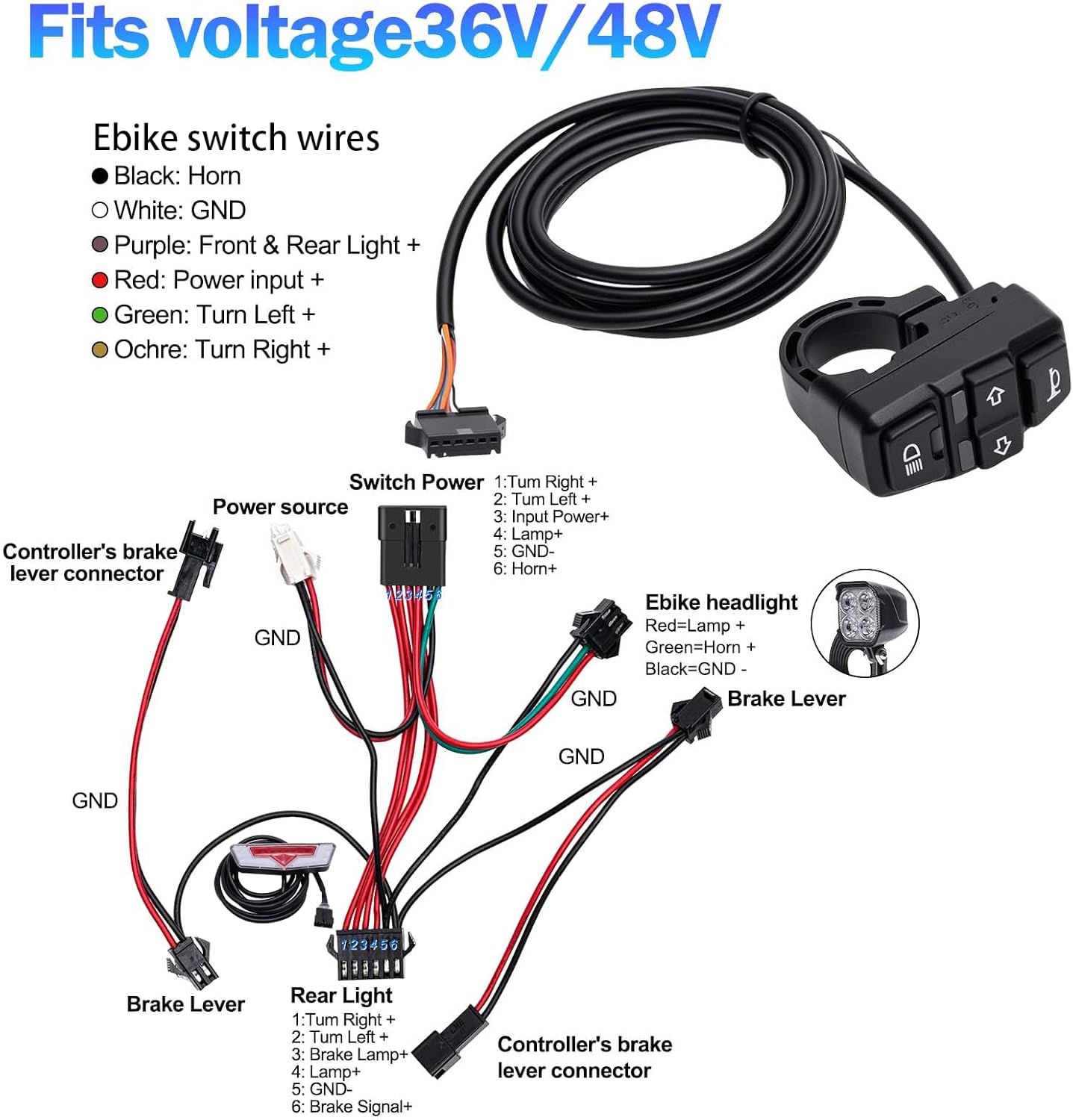

How to use the wiring harness

1. Connect your controller/battery’s light connector to the white “Power source” connector.

2.Connect the switch to the “Switch Power” connector.

3.Connect the headlight to the “Ebike headlight” connector.

4.Connect the rear light to the “Rear Light” connector.

5&6.Connect your ebike’s brake levers to the “Brake Lever” connectors(Female one).

7&8.Connect your controller’s brake connectors to “Controller’s brake lever connector” (Male one).

COMPLETE KIT: Includes 400 lumens ebike headlight, turn signal taillight with brake light function, and handlebar switch for comprehensive bike lighting system
VERSATILE POWER: Compatible with 24V/36V/48V electric bike systems, ebike front light draws 4W power while taillight uses 1.3W for efficient operation
MOUNTING SPECS: Taillight fits racks with 80mm hole spacing, switch fits 22mm handlebars, includes generous cable lengths (headlight 1.2M, taillight 1.7M, switch 1.5M)
LIGHTING FEATURES: Headlight provides 400 lumens brightness, taillight offers turn signals and brake light functionality with 100LM output
DURABLE DESIGN: Waterproof rating IP65 for switch, constructed with ABS and PC materials for headlight, plastic housing for taillight and switch components
